LDC (LOW Voltage DC-DC Converter)
LDC is a low-voltage DC converter that consists of a DC input device, a stop value, a DC output device, etc., in a HEV/EV/FCEV vehicle, a high voltage battery, etc. It converts the accumulated electrical energy into a low voltage, charges the 12V battery, and supplies the operating power of the vehicle electric load. Power from (Main Battery Pack) It receives power and supplies 12V of power and replaces the function of the existing internal combustion engine vehicle.

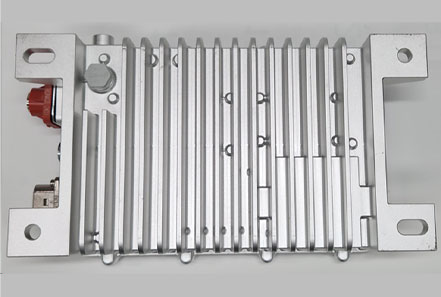

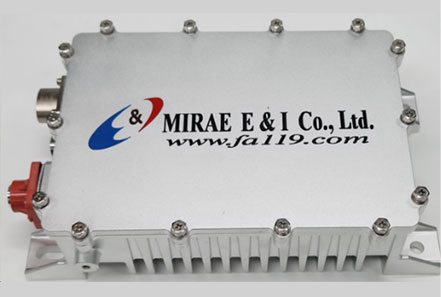

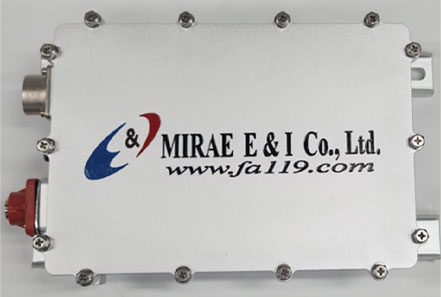

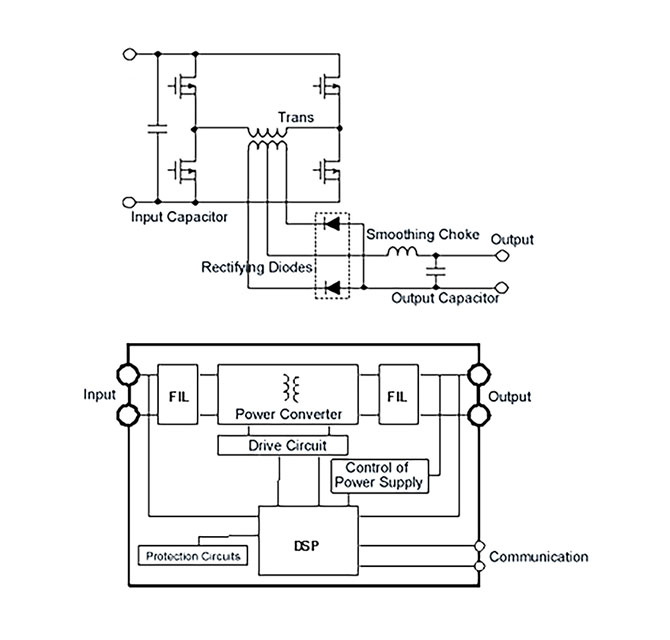

Main Circuit
Protection Functions
- Over Voltage Protection
- Over Current Protection
- Over Temperature Protection
- Low Voltage Protection
CAN Interface(Protocol)
- CAN Interface(Protocol)
Mode
- Normal Mode, Sleep Mode, Charging Mode
Connector 사양
- Signal connector : 5P/cnlinko
- Input connector : 2P 40A/암페놀
- Output terminal : 1P/Rug Type
Diagnosis Functions
- Output voltage, current sensor, communication error
LDC General environment
| 항목 | Spec | 비고 | |
|---|---|---|---|
| General Information | Size | 291.5 x 161.5 x (H)76mm | |
| Weight | 4kg | ||
| Operating temp. | -20℃ ~ 80℃ | ||
| Storage temp | -24℃ ~ 125℃ | ||
| Dark current | 1mA or less | ||
| Humidity | <RH95% | ||
| EMC | TBD | TBD | |
| IP | IP67 | ||
| Communication(Vehcle) | CAN2.0A | ||
| function | Protection function | OVP, LVP, OCP, OTP | |
| Input/Output | Input voltage |
Type1: 72~99.6V (Rated 86V) @Max 30A Type2: 120~165VDC (Rated 144V) @Max 23A |
입력사양 주문선택 |
| Output voltage/current | 12.5 ~ 14.5V/ Max 86A @1.2kW | ||
| Voltage/Current accuacy(rms) | <±2%(Full Scale) | Voltage,Current | |
| Volume | 1.2kW | ||
| Ripple(rms) | <±1% | ||
| Output rising time | <10 seconds | ||
| Cooling Method | Air Cooling | ||
| Maximum efficiency | 94% or more |

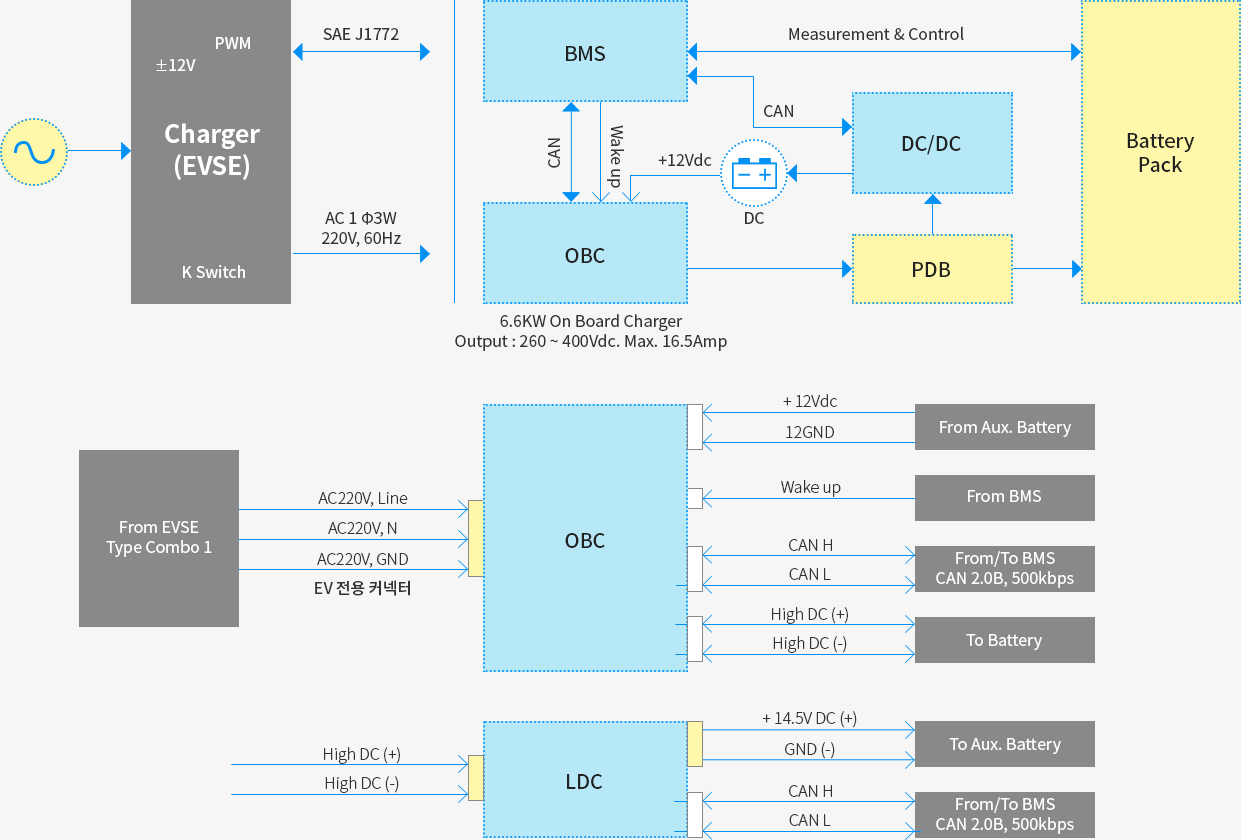

Block Diagram

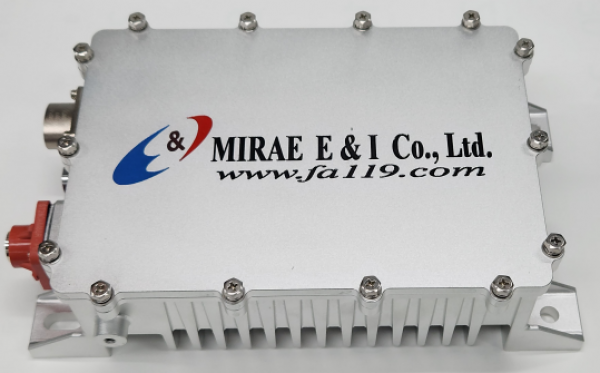

Product List
Total 2
-
ProductModel nameDivisionProduct Description
-
MR-LDC(1.2kW)_861.2kW LDCThis product is a DC-DC converter used in electric vehicles. It converts the high voltage from the vehicle's main battery into a 14V output to charge the 12V lead-acid battery that powers the 12V low-voltage system. This type of converter is referred to as an LDC (Low Voltage DC-DC Converter).
It is a compact 1.2kW device with an input rating of 86V and a 14VDC output specification, capable of CC (Constant Current) and CV (Constant Voltage) control, and is applicable to both general commercial vehicles and special-purpose vehicles.
-
MR-LDC(1.2kW)_1441.2kW LDCThis product is a DC-DC converter used in electric vehicles. It converts the high voltage from the vehicle's main battery into a 14V output to charge the 12V lead-acid battery that powers the 12V low-voltage system. This type of converter is referred to as an LDC (Low Voltage DC-DC Converter).
It is a compact 1.2kW device with an input rating of 144V and a 14VDC output specification, capable of CC (Constant Current) and CV (Constant Voltage) control, and is applicable to both general commercial vehicles and special-purpose vehicles.
