Position Setting Controller (DC Signal Control Motor Positioner)

A proportional setter required for setting position, angle, and rotation direction, as needed by various control devices.

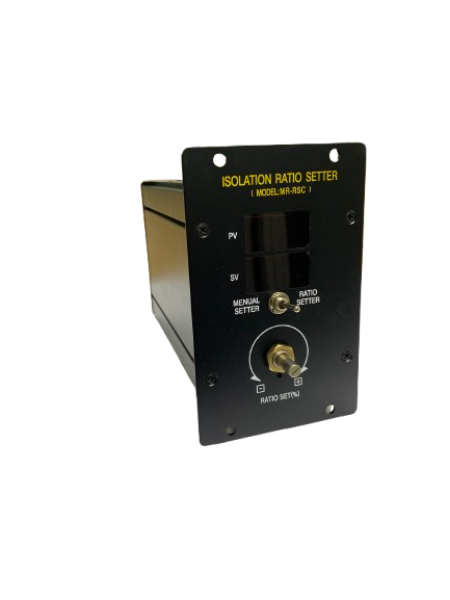

Ratio Setting & Manual Setting Controller
Function select(Ratio / Manual Setter)
Dual Display : PV(0~1999 fix type) SV(0~1999 fix type)
Easy adjust : 10turn large size Potentiometer
Isolation Retransmition output
Easy use
Aplications : Chemical metering
Chloring feeding system

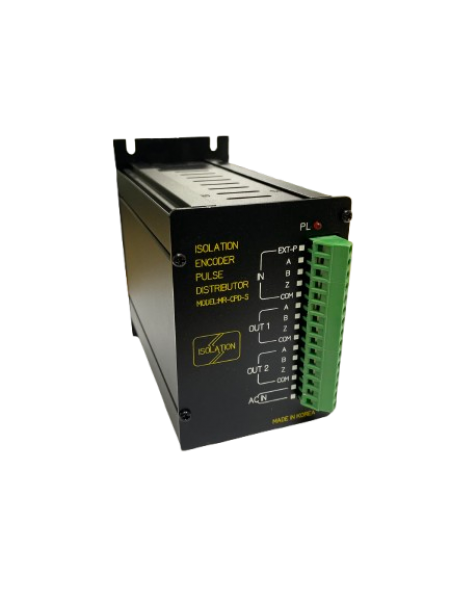

Receives a single signal (e.g., encoder) input and outputs 2 isolated signals
The input signal source is composed of 3 ports (A, B, Z), considering the characteristics of the encoder. The total number of actual inputs and outputs is 9.

The device includes a precise pulse selector and offset adjustment function, making it easy to apply in harsh field conditions.
Supports various input and output methods.
Designed with an aluminum case for easy handling and installation.
Has the function of supplying auxiliary power to the input signal source, so no separate power supply device is needed.

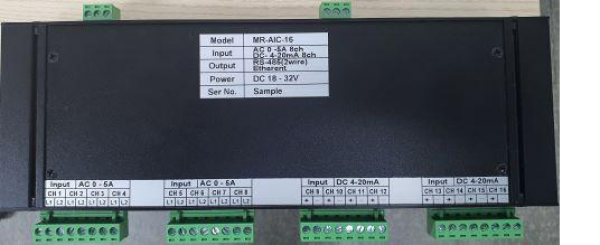

The structure allows for the replacement of I/O boards in 4-channel units.
All 16 channels are electrically isolated.
